HPSA-R
For Nip / Rubber rollers and Cylindrical materials |
3 Models
HPSA-R20 - roller diameters up to 40mm
HPSA-R35 - roller diameters up to 70mm
HPSA-R55 - roller diameters up to 110mm
For cots, pressure rollers and many other rubber coated rollers, etc. The correct Shore A hardness of the cots is a critical factor to get the desired yarn structure and quality. As cots are abrasive, the hardness should be checked from time to time as they age.
 |
 Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators. | | Supplied in a foam-fitted carrying case. |

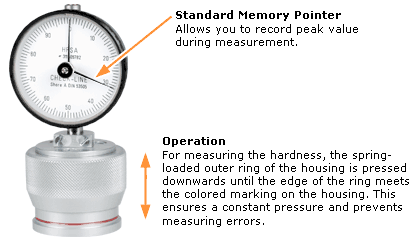

| | Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line. | | Standard Memory Pointer to capture peak measurement. |
|
| | | | The HP series is supplied as a complete kit including gauge and instruction manual in a foam-fitted carrying case. |
 |
|
PTS-HP
Precision Test Stand for HP Durometers |  |
Spring loaded lever for fast & precise travel 11.5" High Shaft allows you measure a wide range of different sized objects | | Click image for more info
|
| Work Face Radius |
HPSA-R20 - 20mm
HPSA-R35 - 35mm
HPSA-R55 - 55mm |
| Indenter: |
Cone 35°, 1.3 mm Ø |
| Typical applications: |
Hardness of elastomers and rubber etc. |
| Depth of indentation: |
0 - 2.5 mm |
| Test pressure: |
Approx. 12.5 N |
| Measuring spring force: |
0.55 - 8.065 N |
| Display range: |
0 - 100 Scale |
| Scale diameter: |
56 mm |
| Working face: |
16 mm Ø = 2 cm² |
| Weight, net (gross): |
approx. 300 g (500 g) |
| Dimensions: |
50 x 50 x 110 mm (L x W x H) |
|
|
