PTS-HP
Precision Test Stand for HP Durometers |

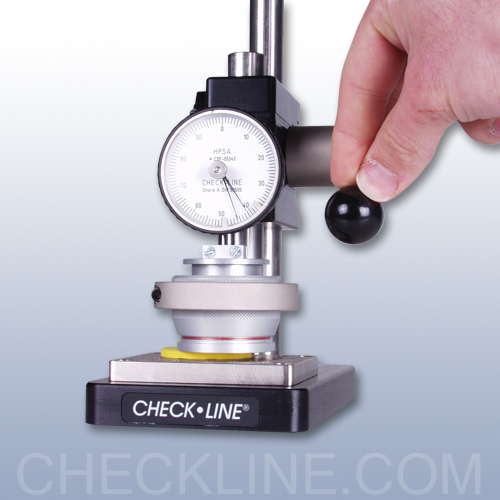

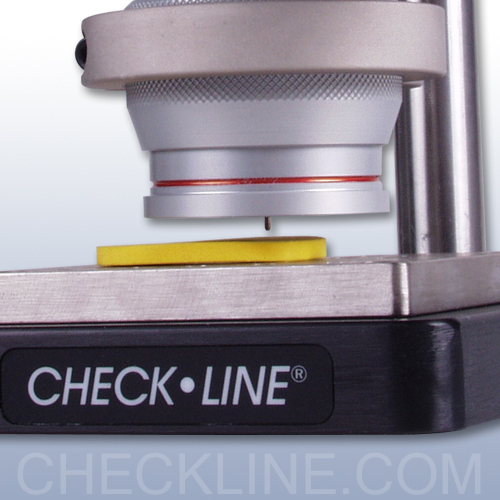

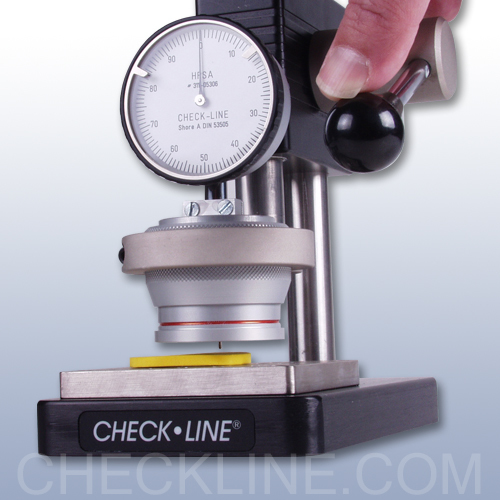

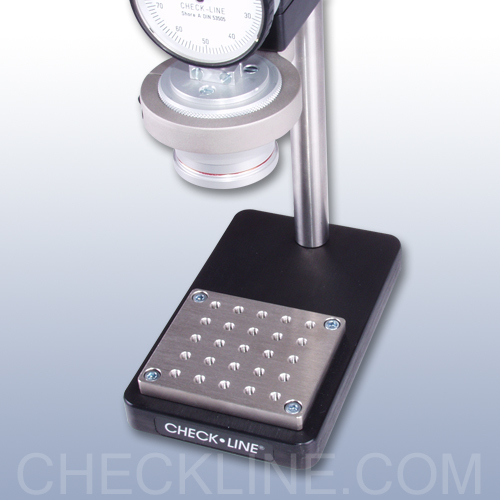

The PTS-HP Precision test stand is designed for smooth, repeatable measurements for hardness testing applications.
Additional Fixtures can be used to allow Force Gauges, Coating Thickness Gauges and more to be mounted.
NOTE: *Durometer Not Included |

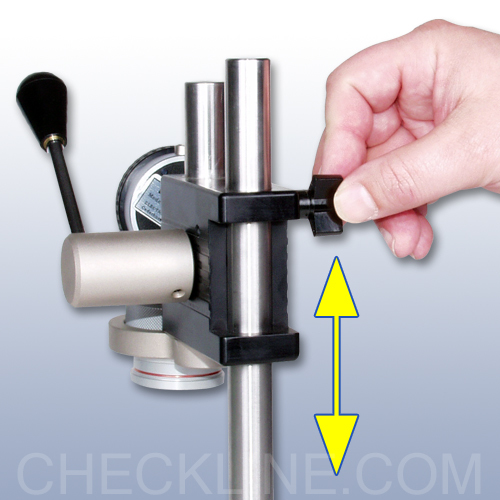

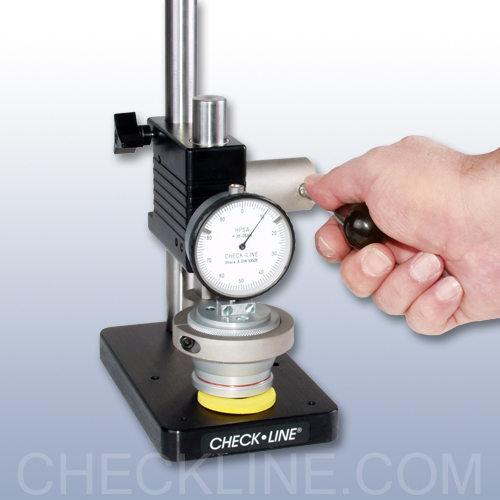

 Spring loaded lever for fast & precise travel | | 11.5" High Shaft allows you measure a wide range of different sized objects |
| | It's Compact size and light weight make it an Ideal test stand for all workplaces | | 3 year warranty |
|
|
HP Series
Shore Durometer |  |
Oversized flat bottom surface makes position of working face (area of contact as specified in ASTM/DIN Standards) convenient and consistent which limits variability between operators. | | Click image for more info | | ___________________________________________ |
|

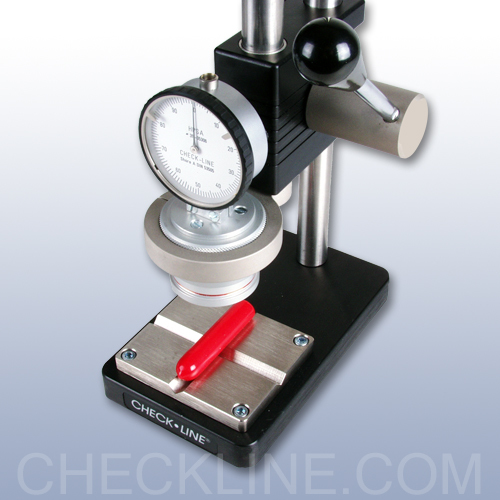

V-Block Cube
V-Block & Base plate for O-rings and small samples |  |
Allows precise, repeatable measurement of small samples | | Click image for more info
|
| Capacity |
30lbs / 13 Kg / 130 N |
| Shaft Height |
11.5" / 290 mm |
| Stroke |
1.65" / 42 mm |
| Weight |
5 lbs / 2.25 kg |
| Warranty |
3 years |
|
|
